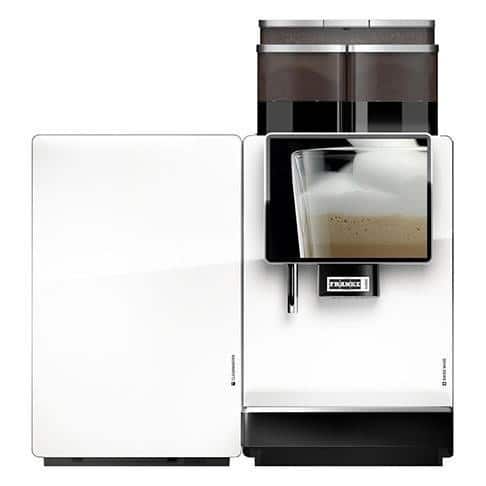

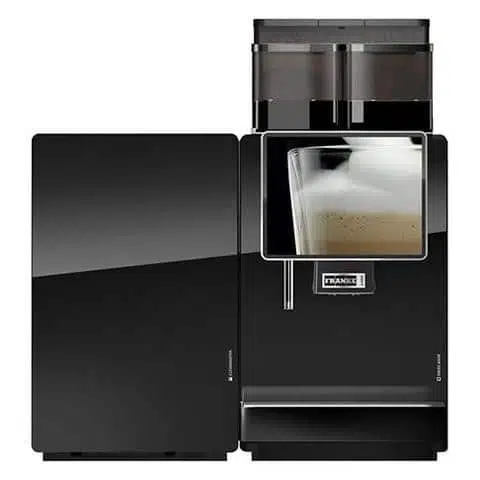

Franke A1000 FoamMaster CleanMaster Plumbed Bean-to-Cup Machine

With its 10.4” wide intuitive touchscreen and user friendly interface, this machine is the ultimate solution for speciality coffees at the touch of a button using fresh milk. Sleek and stylish with its twin coffee grinders, integrated chocolate hopper, option to add the AutoSteam Pro separate steam arm with programmable milk foam consistency and choice of over-counter or under-counter 12 Litre Milk fridge, gives this machine the ultimate modular flexibility to fulfill almost any requirement. The FoamMaster™ milk system means you can enjoy hot and textured milk of your preferred consistency as if it has been prepared by hand. The A1000 is designed to deliver high quantities of drinks in a flash with its three-boiler system allowing you to dispense an espresso, foam some milk and dispense hot water all at the same time.

• Twin bean hoppers & grinders – Bean 1 & Decaf
• Integrated hot chocolate – made with fresh milk
• EasyClean milk cleaning system
• Choice of milk fridges:
o SU12 12 litre milk fridge – over-counter matching black fridge
o UT12 12 litre milk fridge – under-counter fridge
• Intuitive 10.4” HD touchscreen display which can be configured to the customers requirements. (options for screensaver images etc. as well)
• Screen set-up – can have up to three cup sizes in normal & decaff. Up to 12 selections per configuration page also available.
• Coffee bean hopper capacities – 1kg each
• Chocolate canister – 1.2kg
• Separate hot water outlet
• Option to add the AutoSteam Pro separate steam arm with programmable milk foam consistency
• LED lighting
• Colour – gloss black
• Daily output capacity of 250 cups


About The Product

Additional information

Equipment Type

Bean-to-Cup Machines with Contactless Payment

Cup rate


Milk Type

Fresh Milk

Water Connection





Standard Package:

• Franke A1000 FoamMaster™ CleanMaster plumbed bean-to-cup machine
• SU12 12 litre milk fridge
• Colour – gloss black
• Brita water filter
• 12 months parts & labour warranty
• FREE case of 6x1kg Caffia coffee beans of your choice (c750 cups)
• Installation, commissioning & staff training included

[/et_pb_text][et_pb_text _builder_version=”4.16″ _module_preset=”default” text_font_size=”14px” text_line_height=”1.6em” global_colors_info=”{}”]

Optional Extras:

• Annual Gold Service Warranty including water filter & PVI (Pressure Vessel Inspection & Certificate) for year two onwards
• AutoSteam Pro separate steam arm with programmable milk foam consistency
• Vianet contactless payment system – includes telemetry & remote status access via online portal available
• Under-counter 12 Litre milk fridge available.
• Cup warmer and syrup station available

Technical Specification


Machine W340 x H795 x D600mm (allow clearance for access to fill with ingredients)
SU12 fridge W340 x H540 x D475mm
Cup warmer W270 x H540 x D475mm
Syrup station W200 x H540 x D453mm


Machine 32amp/240V/7.9kW
SU12 fridge 13amp/240V/100W
Cup warmer 13amp/240V/120W
Syrup station 13amp/240v/75W

Bean hopper capacity 2 x 1kg
Chocolate canister capacity 1.2kg

Weight 58kg (Machine only)

Plumbing connection Yes – 1 x ¾” water stop-valve required.

Waste connection Plumbed waste connection required.


12 months parts & labour warranty on manufacturing defects; Operator error, misuse and abuse, water and power supply issues are not covered.

Service Not included. Available on request and priced separately. Caffia advise this machine is serviced annually.
Boiler Inspection Not required
Water Filter Replacement Soft Water Area – SP510 or Hard Water Area – IEN9000 – self-fit or engineer fit available
Call-outs & replacement parts Included at no cost in 12 months warranty unless it is deemed to be operator error, misuse and abuse, water issues or power supply issues. Standard call-out & labour rates apply outside warranty period – please email service@caffia.com for more details.
All calls attended within standard business hours. Out of hours rates will apply if required.
We strive to attend all service call-outs within 24 hours.
